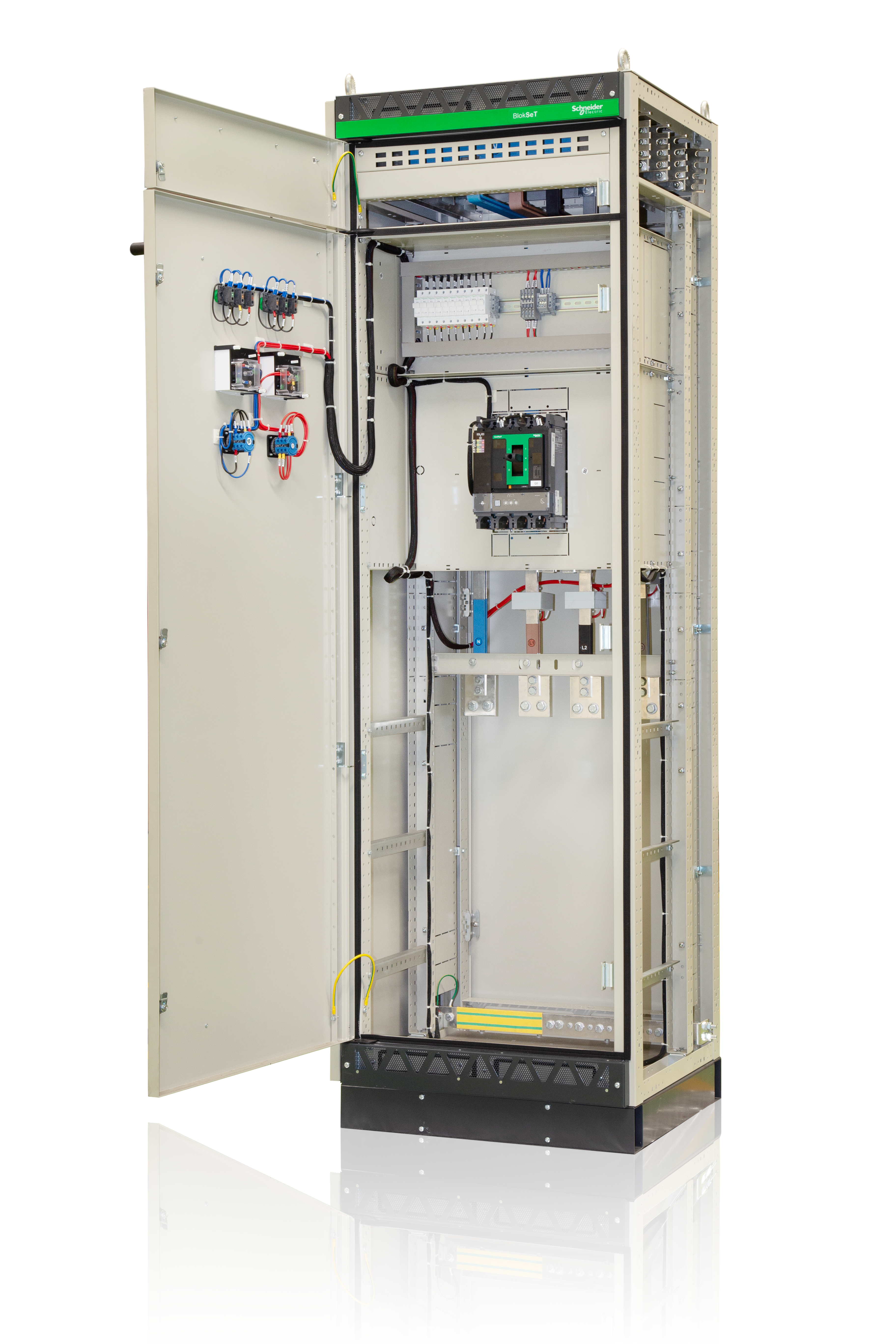

Blokset
BLOCKSET
TYPE
D

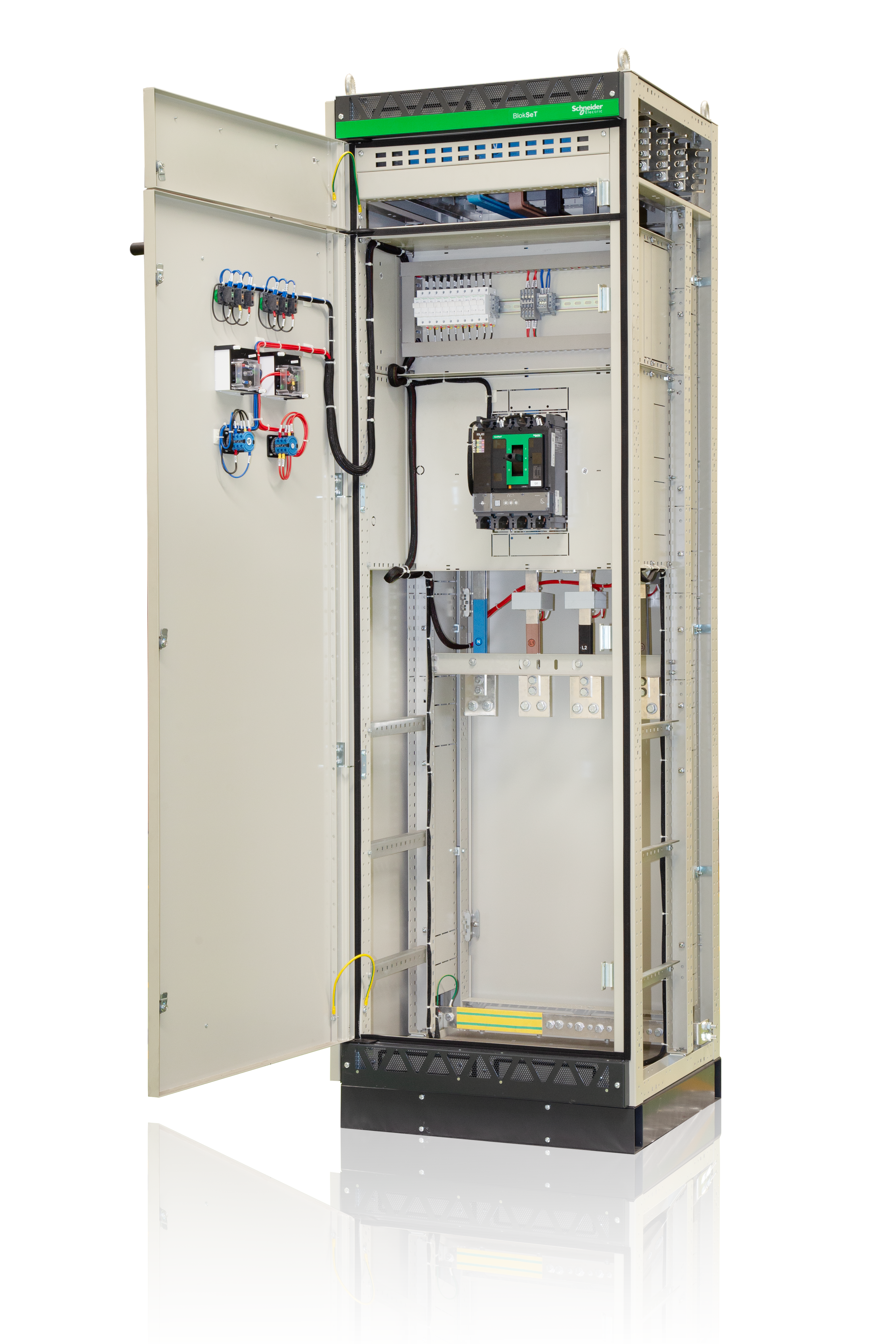

Tipe D Features
- Electric distribution panel
-
Equipped with premium circuit breakers:
- Masterpact NT & NW
- Compact NS & NSX
- Fixed or withdrawable – F.F.F / W.W.W
- Circuit breaker up to 6300A
- Available sizes: 1200mm, 700mm, 200 + 700 + 200mm, 200 + 700 + 400mm

Blockset complies with IEC 60439 & 61439-2
Certifications from independent laboratories: LOVAG, ASEFA, and CESI
TYPE-TESTS PERFORMED AGAINST:
Verification for construction:
- §10.2 – strength of materials and spare parts; corrosion, sealing materials, lifting
- §10.3 – level of protection
- §10.4 – the closest distance between the two conductive elements (clearance) and the closest distance between the surface of the insulating material between the two conductive elements
- §10.5 – effective protective circuit
- §10.6 – incorporation of transfer equipment and components
- §10.7 – internal electrical circuit connection
- §10.8 – the terminal of the external conductors
Performance Verification
- §10.9 – dielectric property
- §10.10 – temperature rise limit
- §10.11 – short circuit holding force
- §10.12 – Electro Magnetic Compatibility (EMC)
- §10.13 – mechanical operation
