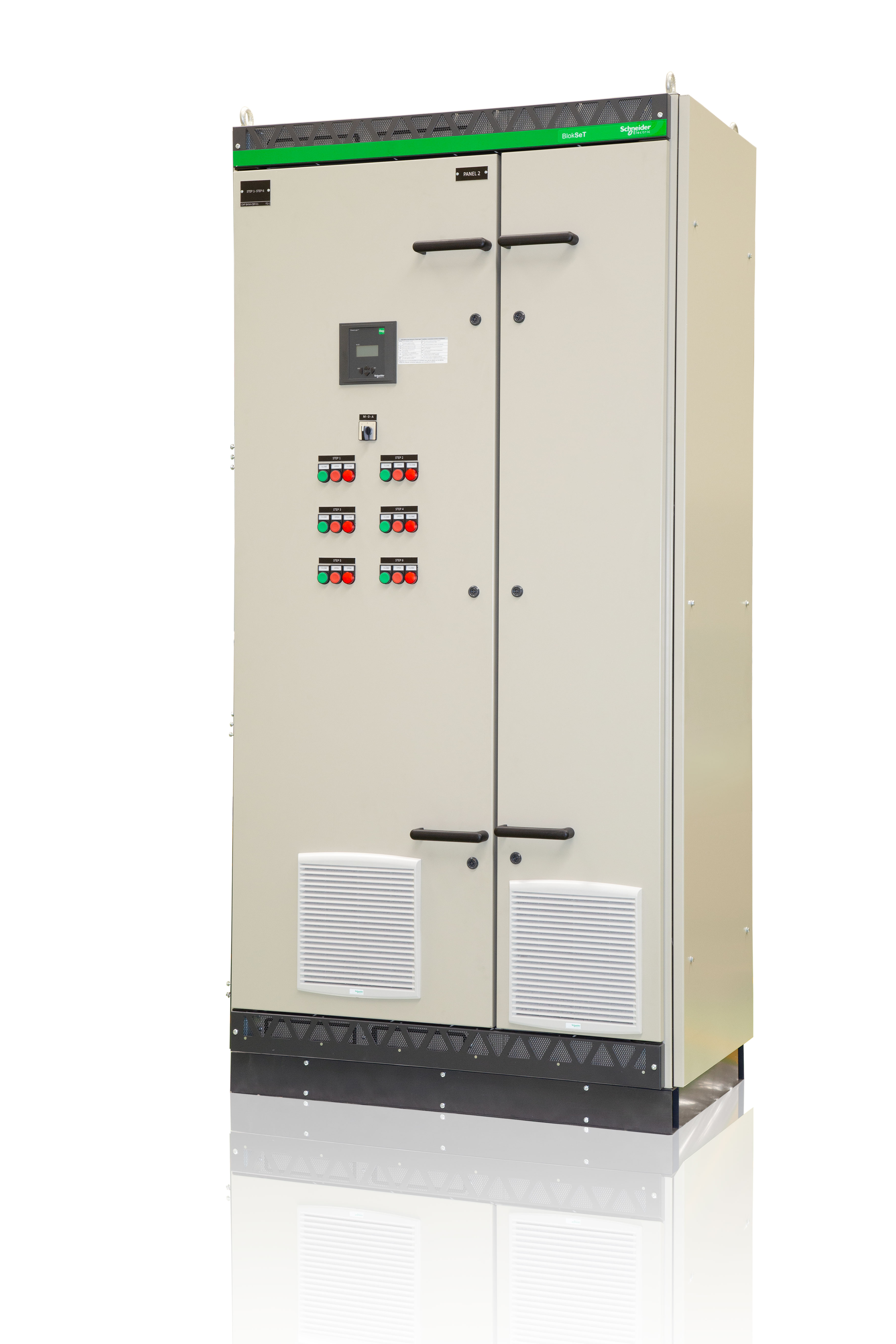

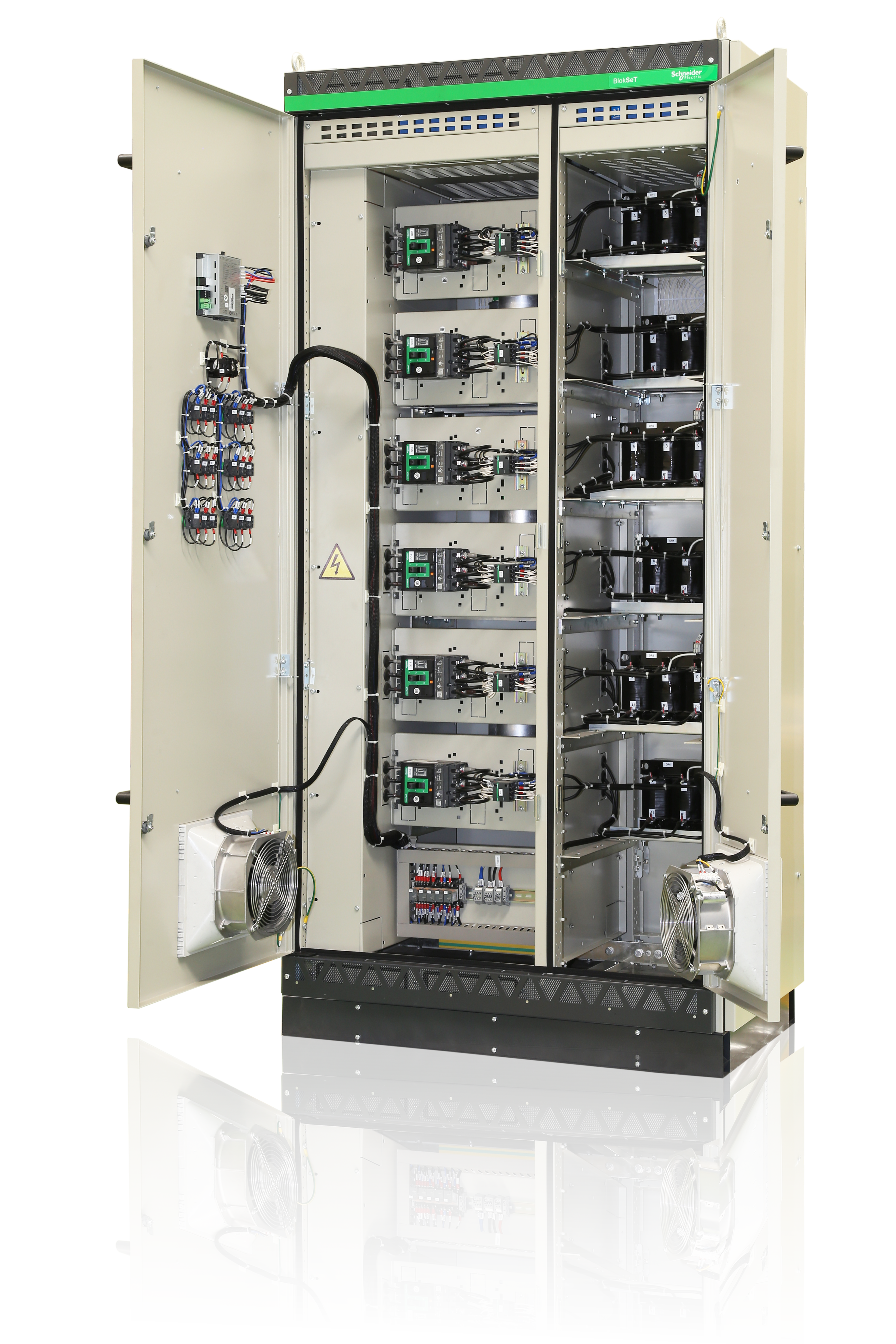

Type DC Features
- Power factor / reactive power correction (capacitor panel)
-
Performance:
- Maximum reactive power 6x90kVAR
- Circuit breaker NSX 250
- Horizontal bus bar 4000A
- Vertical bus bar 3200A
- ICW up to 85kA 1s
Blockset complies with IEC 60439 & 61439-2
Certification from independent laboratories: LOVAG, ASEFA, and CESI; as well as by a permanent control in
Schneider Electric test laboratory.
TYPE-TESTS PERFORMED AGAINST:
Verification of Construction:
- §10.2 – strength of materials and spare parts; corrosion, sealing materials, lifting
- §10.3 – level of protection
- §10.4 – the closest distance between the two conductive elements (clearance) and the closest distance between the surface of the insulating material between the two conductive elements
- §10.5 – effective protective circuit
- §10.6 – incorporation of transfer equipment and components
- §10.7 – internal electrical circuit connection
- §10.8 – the terminal of the external conductors
Performance Verification
- §10.9 – dielectric property
- §10.10 – temperature increase limit
- §10.11 – short circuit holding force
- §10.12 – Electro Magnetic Compatibility (EMC)
- §10.13 – mechanical operation
